L10 4CH DC PWM LED Energy Efficient LED Dimming Controller
DC Driven
- DC 12-48V input
- 12-48VDC LED
- Energy saving
- Long life
PWM Dimming
- 0-100%
- 1000 brightness levels
- No flash,No flicker
Max Power 750W
- 4A per channel
- Total 16A@48V
- Up to 750W
link Control
- RS485
- Modbus-RTU
- Long distance
3 Years Warranty
Reliable you can trust
Features
Advantage of Light Dimming
Lighting occupying 20% of the total power consumption. Therefore, using the LED dimmer is the best energy efficient solution for environmental friendly, power saving and cost saving.
The LED dimmer can reduce the temperature of the LED. LED life time can be extended double by reducing 10°C, LED waste disposal will also be reduced greatly.
LED brightness can be adjusted and dimmed to create the appropriate ambiance with energy efficient.
Features of L10 PWM LED Dimming Controller
A LED with driver normally will be broken approx. 2 years lifetime makes costly service and maintenance.
The dimming and cabling with an appropriate driver for AC TRIAC is easy. However, the LED will flash if the dimming is lower than 20%. Additional cables are required on the driver for 0-10V/DALI which is difficult for the maintenance and cabling work.
L10 using industrial graded driver to drive numerous LEDs and the warranty of the driver is 3-7 years. LED life time can be extended and the cabling work is also easy. So, the maintenance will be cost efficient.

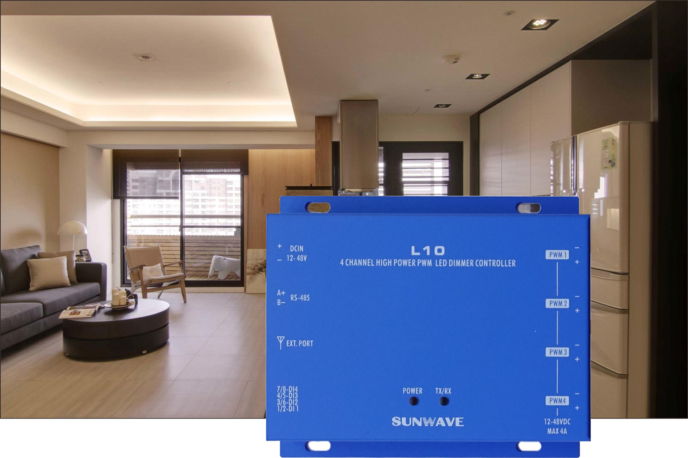

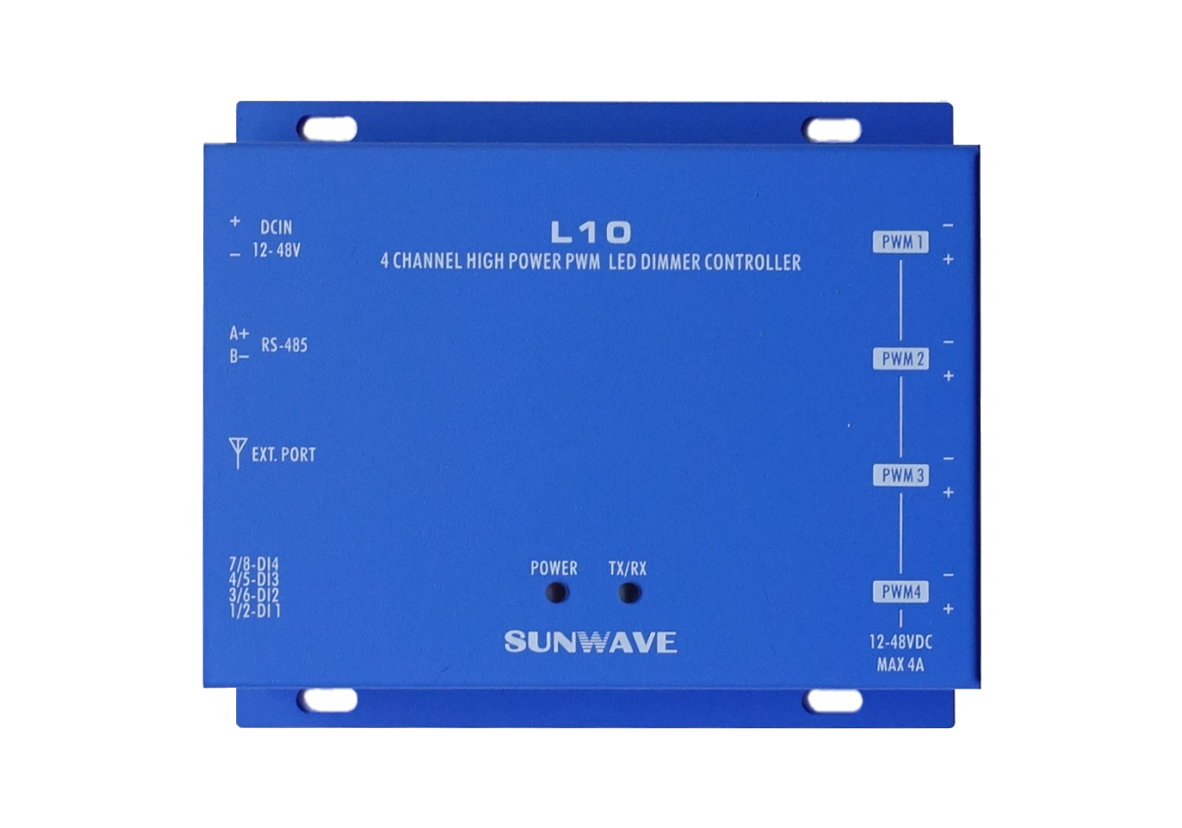

Introduction of L10 PWM LED Dimming Controller
L10 LED Dimming Controller is connected between the LED and the industrial graded driver to achieve the purpose of LED dimming and smart control.
The voltage of the LEDs on the 4 channel output must be identical. L10 supports off-the-shelf 12-48V LED. However, since the LED specification is still not yet be unified, we recommended various 36V LEDs for you.
Able to connect with On/Off switch, rocker switch and PIR motion sensor for the dimming

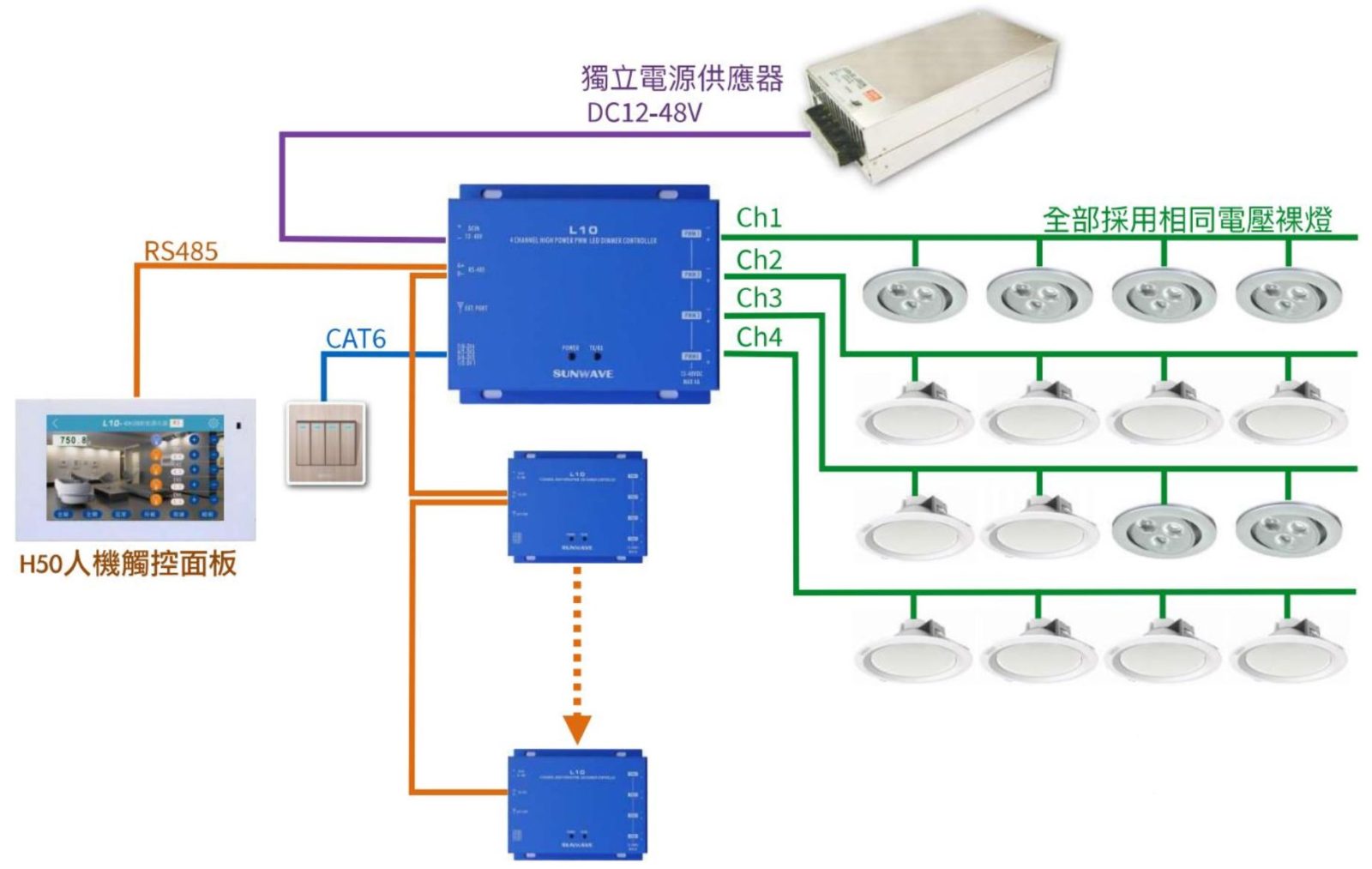

Max. 190 sets of L10 can be daisy chained through RS-485 to form a large dimming system.
No main device is required

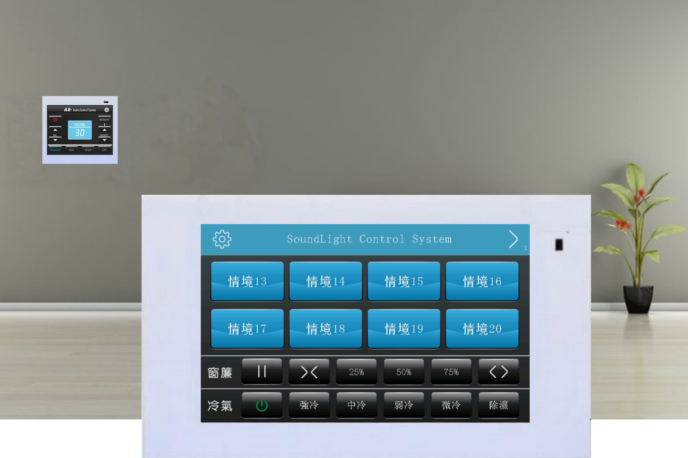

L10 PWM LED Dimming Controller is a microsystem that do not need a main device. It only need to connect with a HMi Touch Screen Console to perform the LED dimming system. No software development is required for the HMi Touch Screen Console and the UI can be customized to interactive and status feedback for multi-zone. This is a good solution to achieve elegant dimming system without breaking the bank and expertise required.
Smart Control

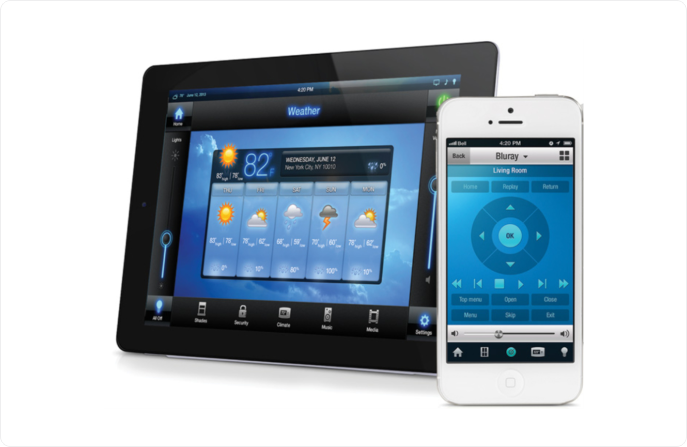

L10 can be daisy chained through RS-485 cable to form a dimming system. It can also be connected with other major brand control devices by the Modbus-RTU communications protocol to create a smart lighting control system and to be controlled by the mobile devices and tablets.
Specifications
Features
- 20 groups of scene setting
- Supports max. 190 units, 96 groups and single unit dimming
- Status feedback for brightness, voltage, current, power and temperature
PWM Dimming
- Total current output is 16A for 4 channels, max. 4A output for each channel
- Independent short-circuit, overloading and surge protection for each channel
- High frequency PWM dimming without any flicker for perfect eye protection
- 1,000 adjustable brightness generating a smoothness dimming
- Adopt DC LED driver to reduce the power loss
- Supports off-the-shelf 12-48VDC LED
Isolated RS-485 Serial Communication
- RS-485 serial communication can set Master-Slave arrangement
- Using Modbus-RTU communications protocol
- Data transmission speed at 9600, 19200, 38400, 57600 and 115200 bps
- Providing various dimming commands to create scenery diversification
- Single or multiple device control makes set up processing simple and easy
Interface expansion
- 5V UART interface
- Able to connect with RF module or other sensors externally
4 DI(Digital input)
- 3 kinds of trigger control methods
- Able to connect with toggle switch or push button to dim, on and off the lights
- Able to connect with PIR motion sensor for on/off brightness
- PWM channel output can be set for multi-group
Power Supply
- 12-48V DC input
- Power consumption: Working: Max. 4W, Standby: Max. 2W
Operating Temperature
- -5°C – 50 °C。
Outer casing
- Metal case, Dimension: 118(L) x 83 (D) x 31 (H) mm
- Weight: 330g
